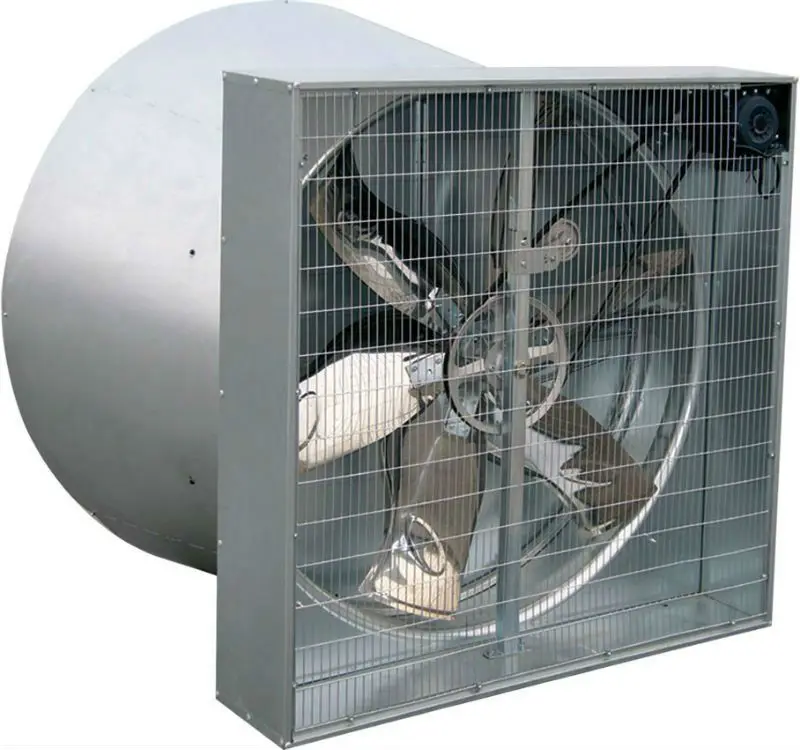

Butterfly Cone Fan for Poultry Farm House

FOB Reference Price:Get Latest Price
$250.00 - $280.00 / Set | 10 Set/Sets (Min. Order)
Electric Current Type:
AC DC Other
Model Number:
BC-1380
Air Volume:
44000m3/h
Speed:
1400r/min
Lead Time:
Quantity(Sets) 1 - 100000 >100000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Place of Origin:
Shandong, China
Brand Name:
Bangchi
Power:
1.1KW
Voltage:
380V
Certification:
CSA, CE, CCC, UL, GS
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Warranty:
More than 5 years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Advertising Company
drive:
belt drive
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
paper cartons
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 100000 >100000
Est. Time(days) 5 To be negotiated

Advantages:

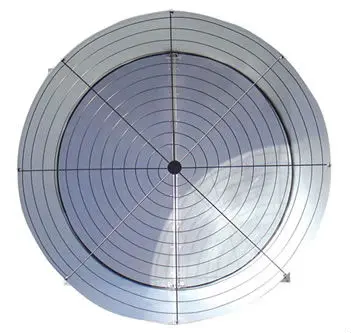

1) This fan adopts advanced frontward open system, butterfly type, with two semicircle shutter doors, wind resistance is small, good air-tightness and high efficiency.
2) For the cone part, adopt new design, plug-type connection, not need many bolts and nuts for tightening as before, intensity of labor is reduced, also improve aesthetic results of fan.
3) The belt tensioner device made of aluminum-magnesium alloy, non-deforming, long service life. This device make the belt inside tight up, effective for avoiding the belt distortions in reverse direction, so prolong the belt life time, saving cost.
4) When the two semicircle shutter doors close, the rubber sealing ring make good airtightness. In different condition, not run all the fan, the air could pass through the space of stop fan, use this type fan, could avoid this problem. Ensure air pass through the evaporative cooling pads or air inlet only, so that greatly improve the fan efficiency, (as compared with different type of same size fan, improve efficiency 15-20%)
5) The fan motor installed on the top left corner, effective protection of the motor. Avoid wind resistance. And the motor panel connection is reasonable, fixing fan frame more stronger.




54\'' butterfly cone fan.jpg
